产品中心
PRODUCT

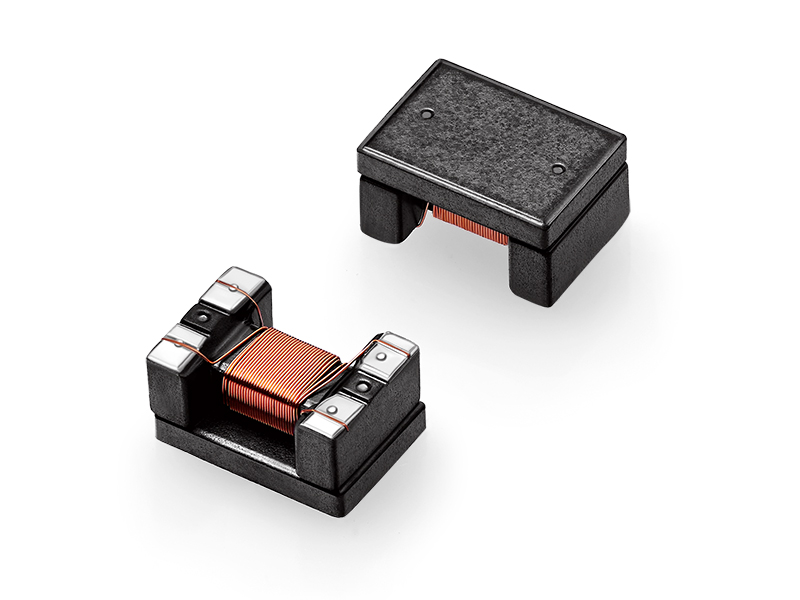

Signal Common Mode Chokes
 |
It is widely used in LIN/CAN/FlexRay BUS; T-Box, Common Mode Filtering, etc. Low Profile & Small Size, Low DC Resistance, Low Audible (Buzz) Noise, etc. |
SMC Series
—————————————————————————————————————————————————————————————————————————————————————————————
| Series |
L (mm) |
W (mm) |
H (mm) |
Description | Datasheet |
| SMC0805 | 2.0 | 1.2 | 1.20 |
Impedance Range： 30~1000Ω Rated Current Range：150~450mA |
 |
| SMC1206 | 3.2 | 1.6 | 2.00 |
Impedance Range： 60~2200Ω Rated Current Range：200~400mA |
|
| SMC1210 | 3.2 | 2.5 | 2.35 |
Impedance Range： 80~1000Ω Inductance Range： 11~200μH Rated Current Range：70~400mA |
|
| SMC1812 | 4.5 | 3.2 | 2.60 |
Inductance Range： 11~200μH Rated Current Range：110~360mA |
|
